Case #M2

Mine type
Gold

Application
Drifting & Tunneling

JSI product:

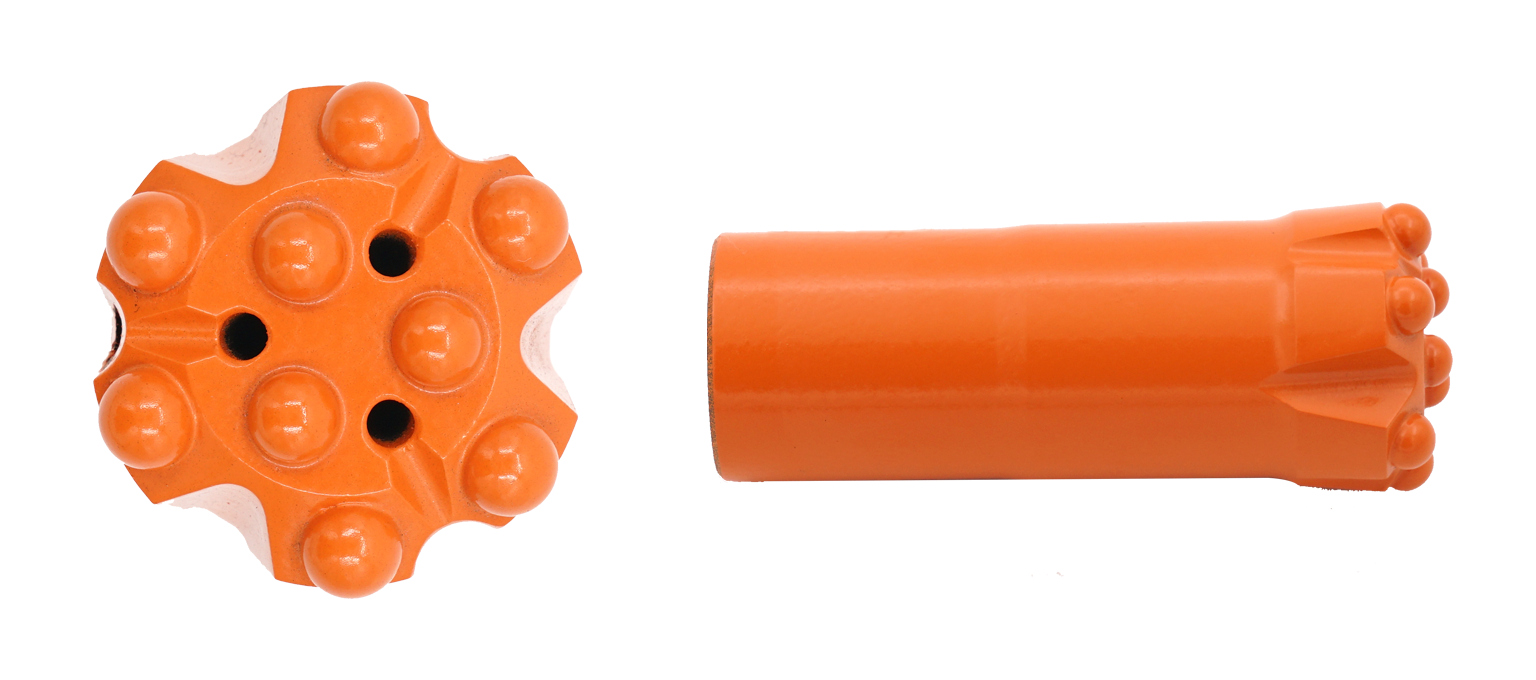

B45R32-G6331H	Threaded button bit	Diameter 45mm	R32	9 Buttons	/

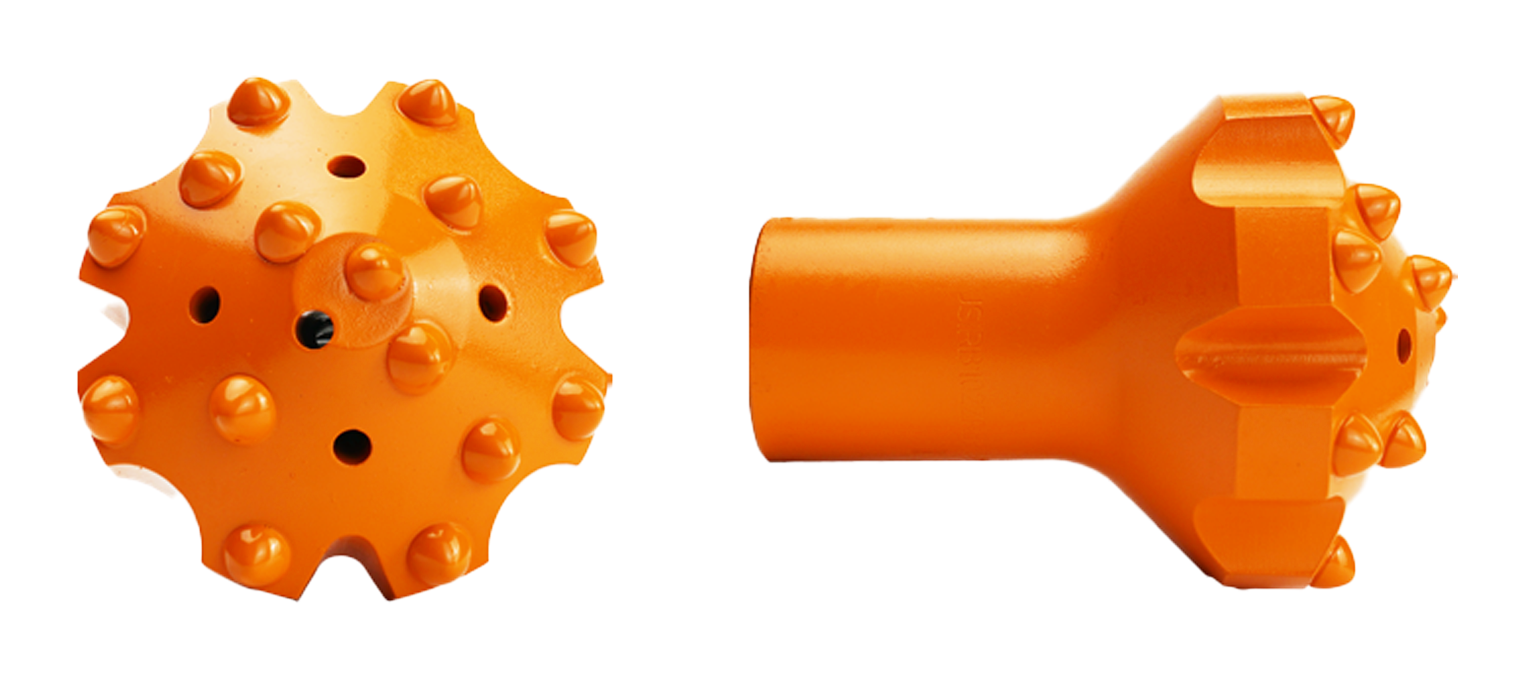

RB102R32-8750	Reaming bit	Diameter 102mm	R32	15 Buttons	/

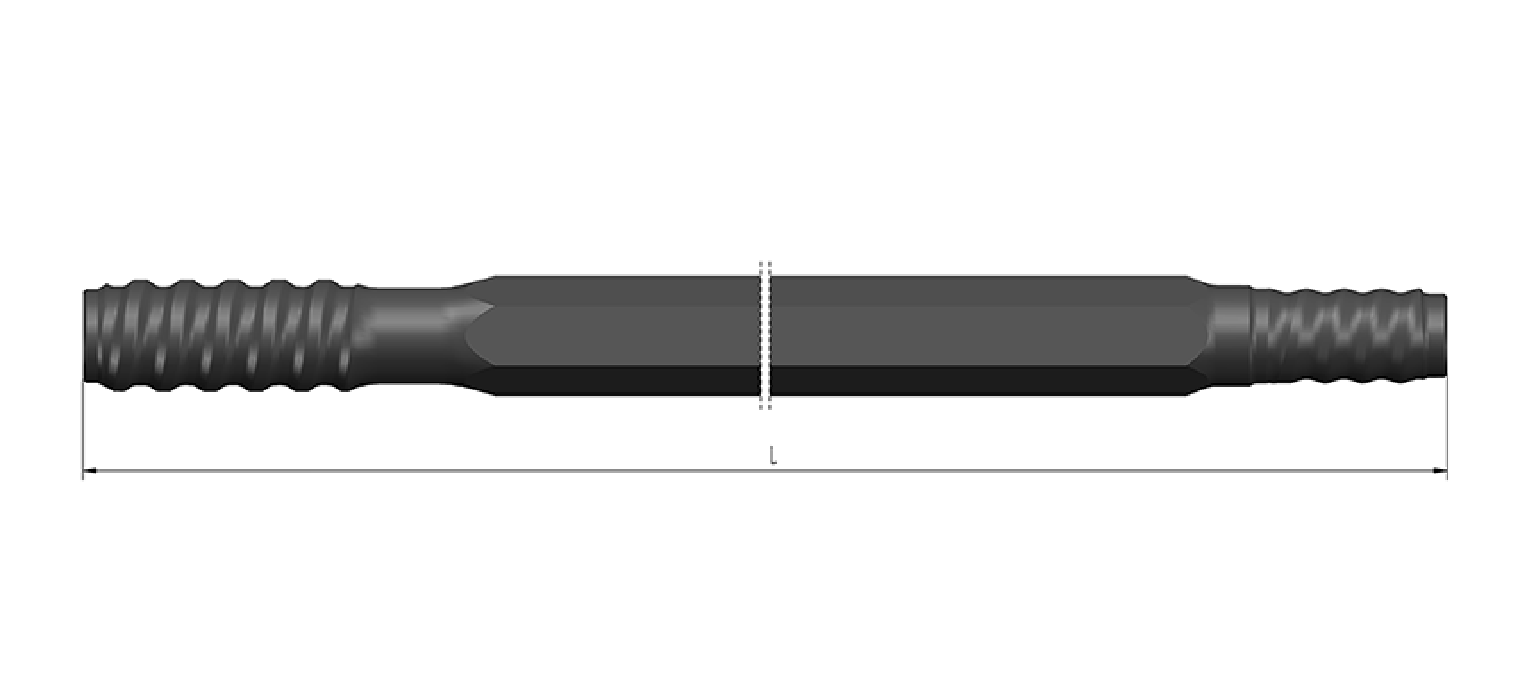

EH35-3700-R32T38	Extension rod	Hexagon 35mm	Male R32	Male T38	Length 3700mm
EH35-4305-R32T38	Extension rod	Hexagon 35mm	Male R32	Male T38	Length 4305mm

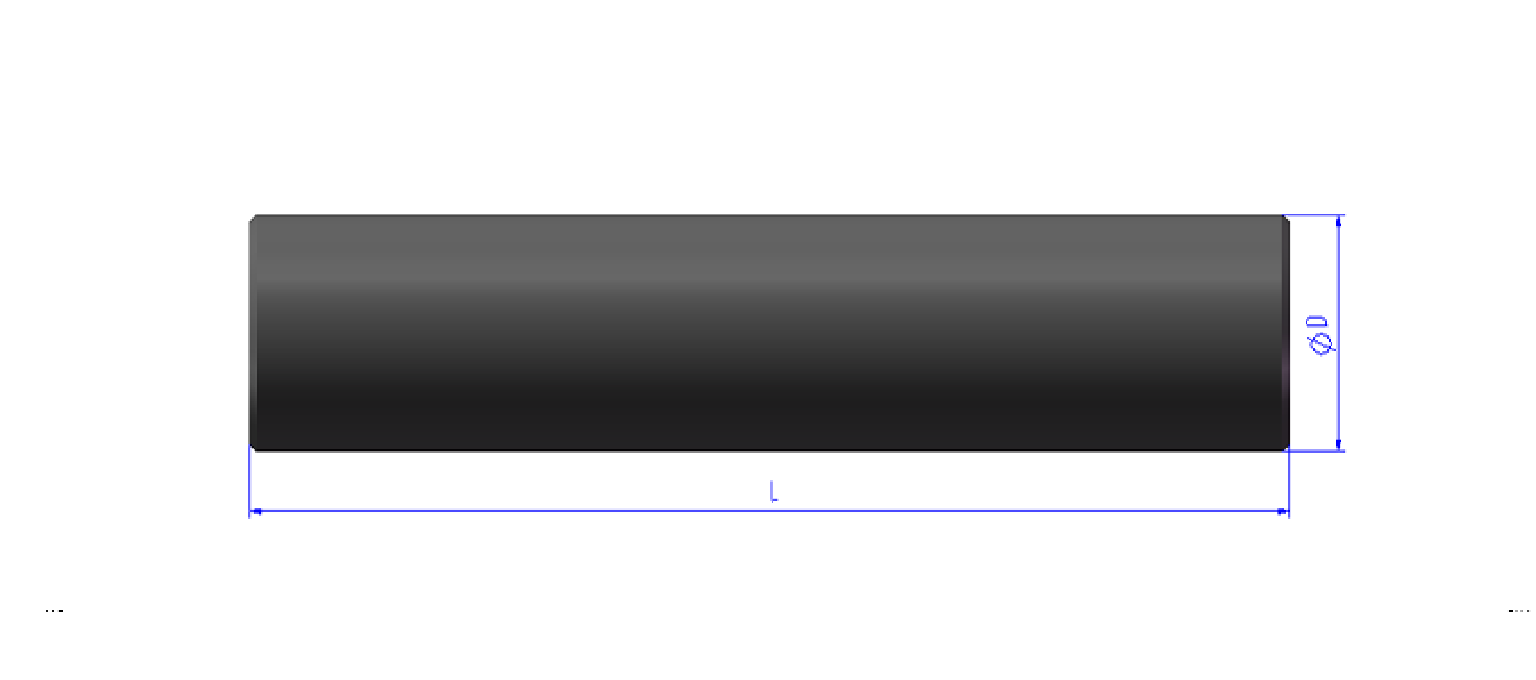

C55190-T38T38Q	Coupling sleeve	Diameter 55mm	Female T38	Female T38	Length 190mm

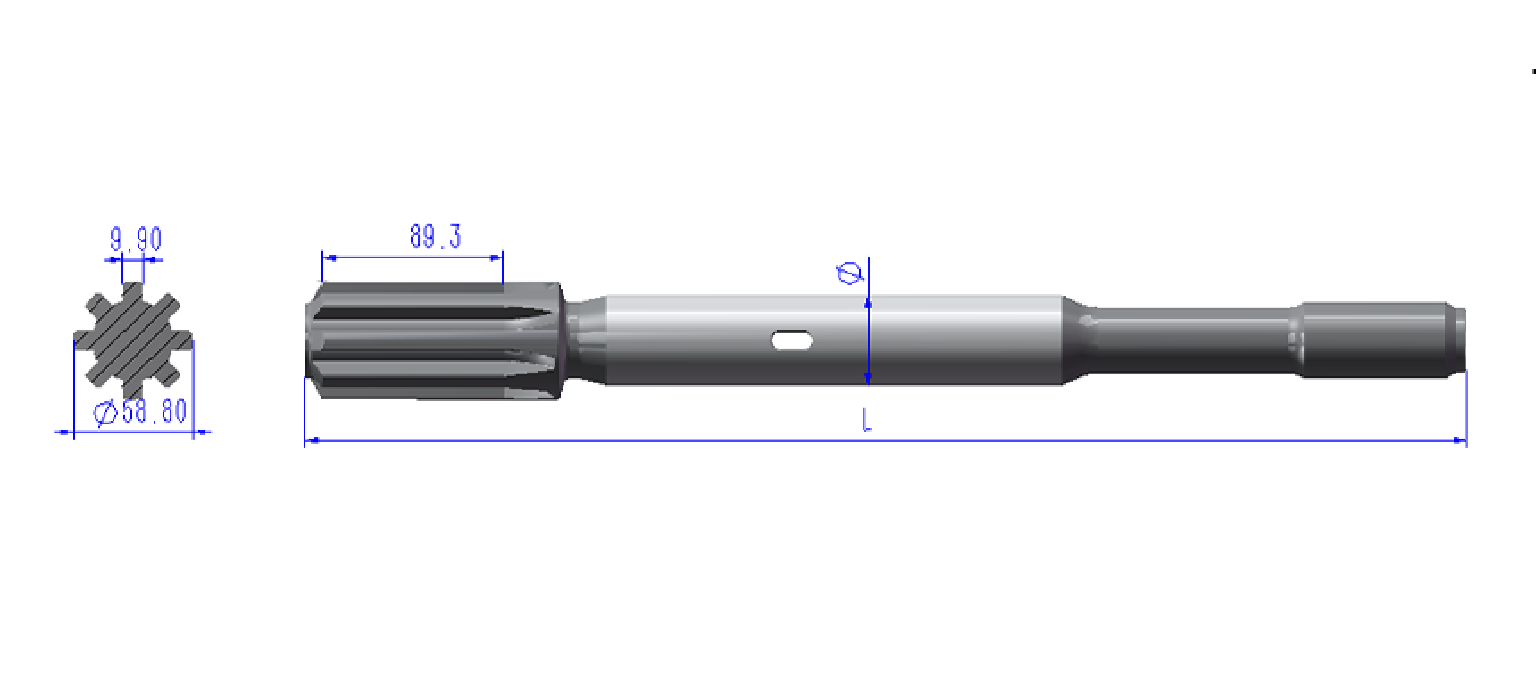

SKT38-575-HLX5PE-45	Shank adapter	Shank for HLX5 PE	T38	Diameter 45mm	Length 575mm
SKT38-435-COP1838-38	Shank adapter	Shank for COP1838	T38	Diameter 38mm	Length 435mm

Product performance

Abrasive rock, medium hard to hard (f=14) . The average lifespan of drill bit is about 169 meters, and drill rod is about 1200 meters.

Recommended case
